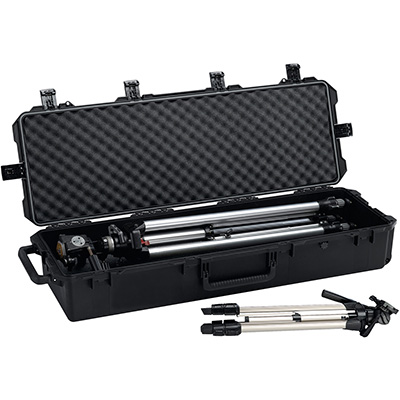

iM3220 Storm
iM3220 Storm Case

SKU: IM3220-00001

Color: Black

Configuration: With Foam

Commercial Quote Locate an Authorized Dealer Near You.
Product Features
  • Six Press & Pull Latches
  • Vortex™ Valve
  • Two Double-layered, Soft-grip Handles
  • O-ring seal
  • Powerful Hinges
  • Lightweight Strong HPX® Resin
  • Two Padlockable Hasps
  • Guaranteed for life

Overview

The Pelican™ Storm Case™ has the same legendary DNA as our Pelican Protector Case, with one primary difference: A unique Press and Pull latch that locks automatically, but open with a light touch.

Guaranteed for life, the Pelican Storm case is made in the USA and engineered using the finest components.

Specs

Dimensions
Interior (L×W×D)
44.00 x 14.00 x 8.50"
Exterior (L×W×D)
47.20 x 16.50 x 9.20"
Measurements
Lid Depth
2.00"
Bottom Depth
6.50"
Total Depth
9.20"
Int Volume
3.03 ft³
Padlock Hole Diameter
0.38"
Weights
Weight With Foam
24.80lbs
Weight Empty
20.40lbs
Buoyancy
188.32
Materials
Body Material
Injection Molded HPX™ high performance resin
Latch Material
Valox - Polybutylene Terephthalate (PBT)
O-Ring Material
EPDM
Pins Material
Stainless Steel
Foam Material
1.3/1.35 polyester
Purge Body Material
Valox - Polybutylene Terephthalate (PBT)
Purge Vent Material
Gortex membrane
Temperatures
Minimum Temperature
-20°F
Maximum Temperature
140°F

Support

guarantee
For warranty information, see our
Guarantee of Excellence
support
For additional support,
contact us

Documents

Certificate
Storm-IP67-Cert.pdf
