Industrial Skip Bin Lids

Industrial
Skip Bin Lids

1.5m & 3.0m Front-Lift Bin Lids

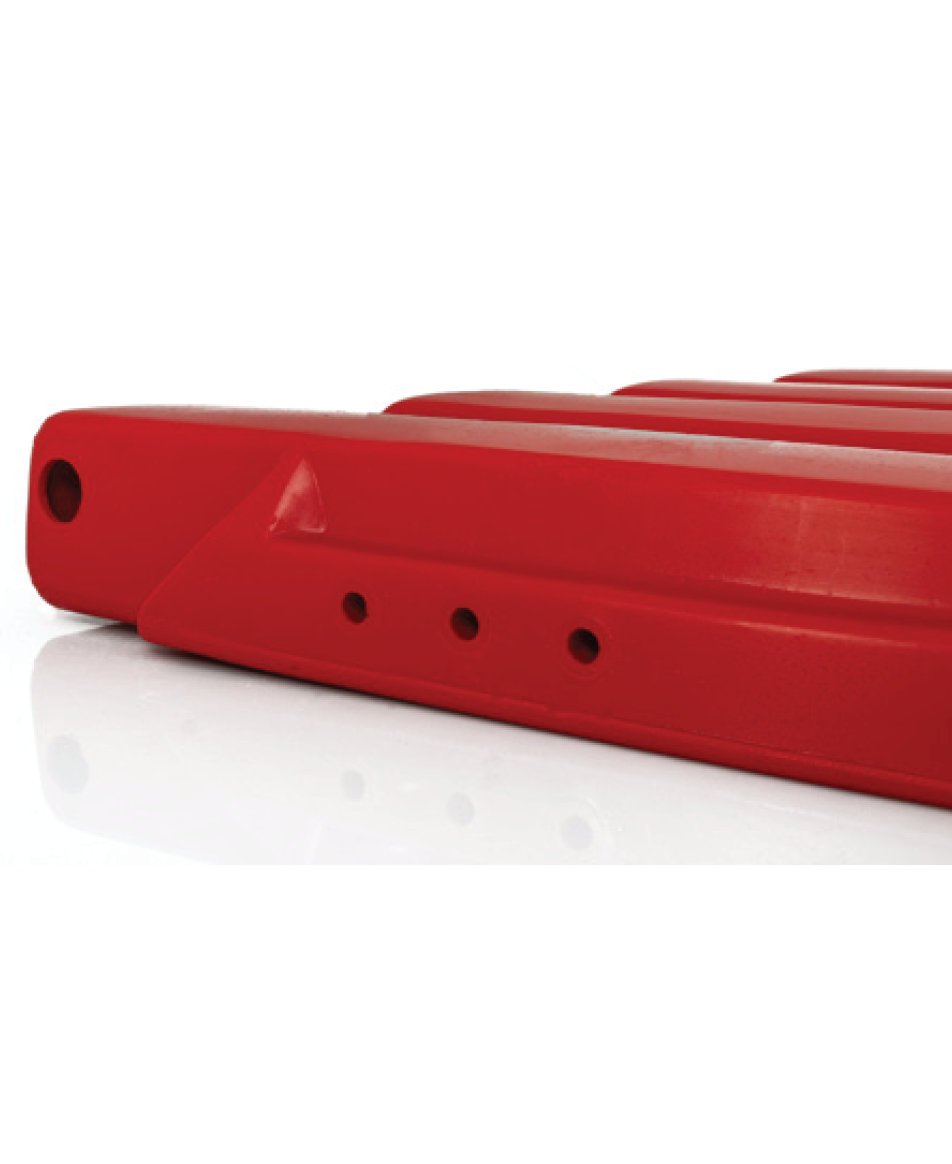

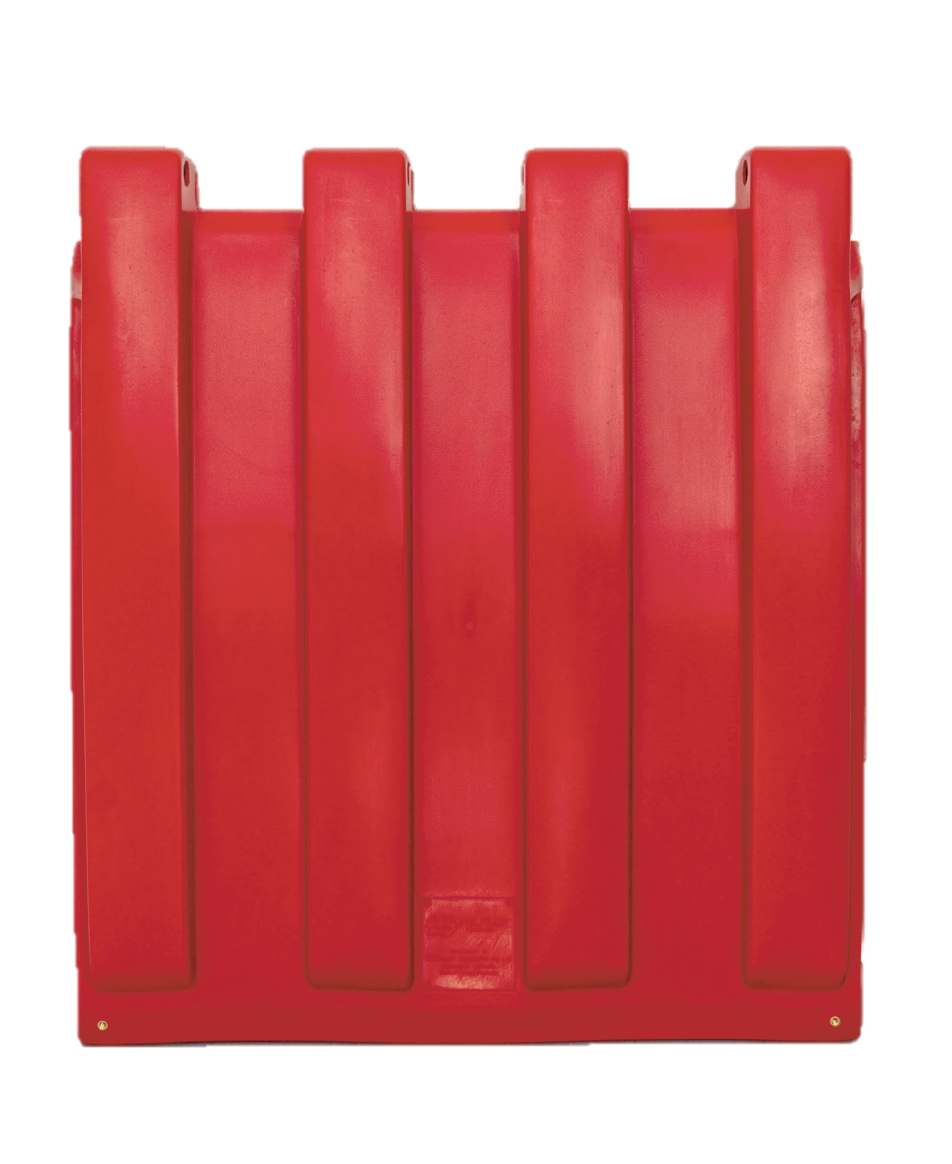

Front-lift bin lid top view Front-lift bin lid side detail view Front-lift bin lid front view

Local Design and Manufacture

Manufactured locally in Melbourne.

Unique Design

Designed for maximum strength and rigidity. Convex profile designed to direct water away from the bin.

Reinforced Hinge Support

Specially designed hinge area provides maximum support to the hinge bar when in use.

Lid Stay

Three positions available as standard to allow a lid stay to be attached with a through bolt.

Hinge Bar

Multiple hinge bar locations with 30mm diameter holes: 30mm or 60mm hinge bar hole height.

Finger Grips

Finger grips located at the front of the lid on both sides for user comfort and safety when opening and closing the lid.

Locking Nut

Moulded-in M8 locking nut on both sides of lid for addition of a locking chain if required.

Customisable Name Plates

Option to have personalised logo or branding moulded into the lid.

Stacking Ribs

Unique ribbing provides a streamline finish and allows for safe stacking during transport and storage.

High Quality Material

Manufactured from high quality LLDPE material. UV stability is rated to UV20 to withstand Australian conditions.

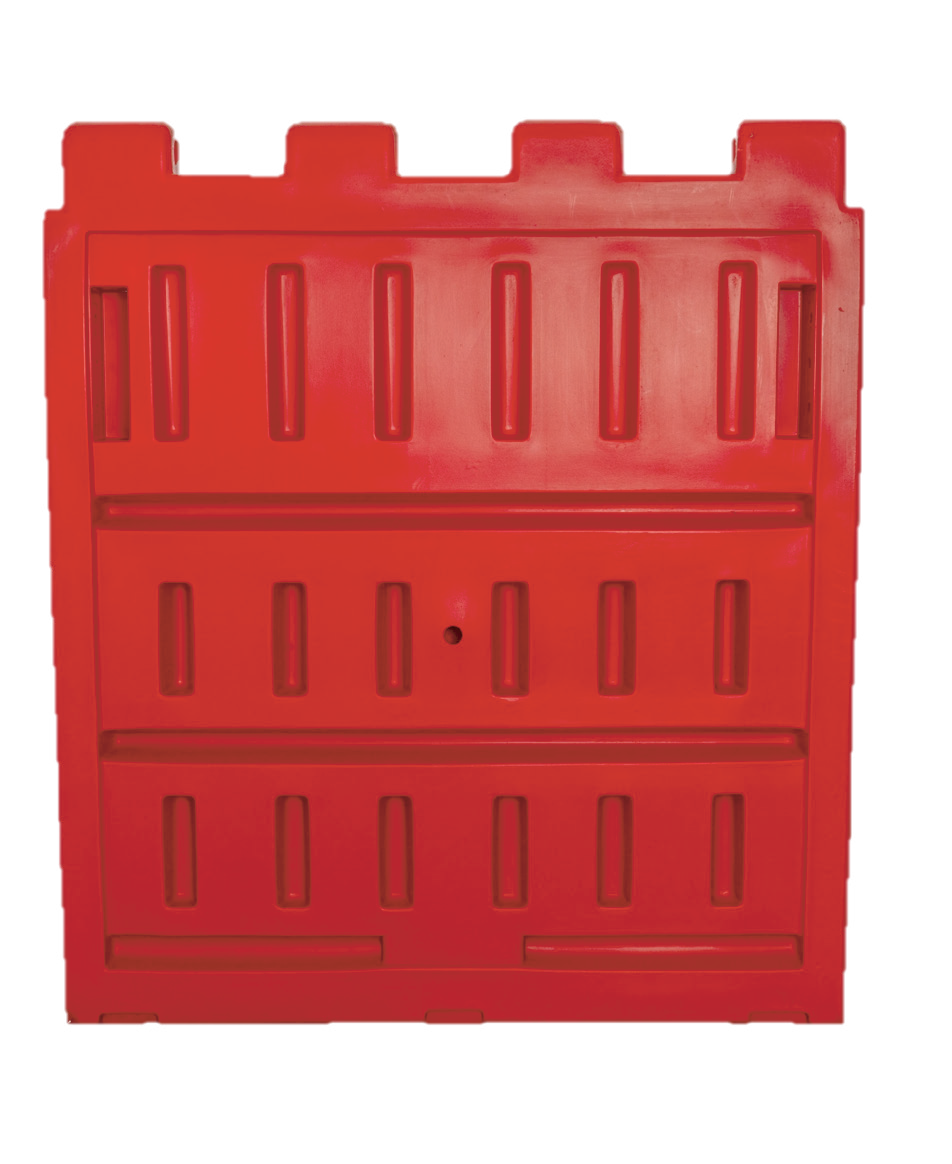

Front-lift bin lid front view

Local Design and Manufacture

Manufactured locally in Melbourne.

Unique Design

Designed for maximum strength and rigidity. Convex profile designed to direct water away from the bin.

Reinforced Hinge Support

Specially designed hinge area provides maximum support to the hinge bar when in use.

Lid Stay

Three positions available as standard to allow a lid stay to be attached with a through bolt.

Hinge Bar

Multiple hinge bar locations with 30mm diameter holes: 30mm or 60mm hinge bar hole height.

Finger Grips

Finger grips located at the front of the lid on both sides for user comfort and safety when opening and closing the lid.

Locking Nut

Moulded-in M8 locking nut on both sides of lid for addition of a locking chain if required.

Customisable Name Plates

Option to have personalised logo or branding moulded into the lid.

Stacking Ribs

Unique ribbing provides a streamline finish and allows for safe stacking during transport and storage.

High Quality Material

Manufactured from high quality LLDPE material. UV stability is rated to UV20 to withstand Australian conditions.

Pelican

Industrial Skip Bin Lids

1.5m & 3.0m Front-Lift Bin Lids

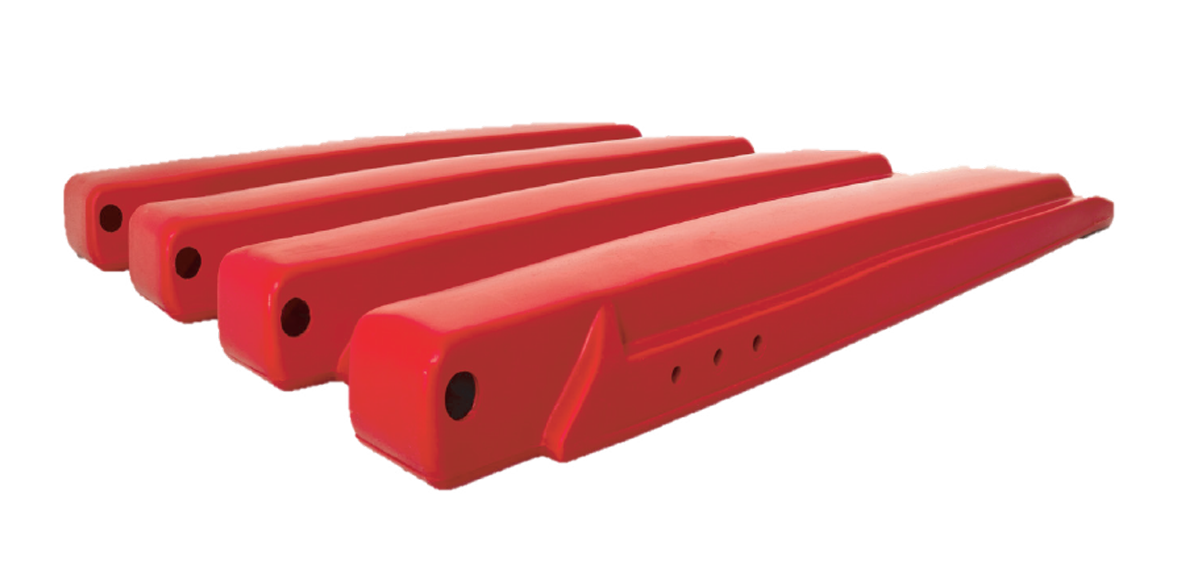

Industrial skip bin lid angled top profile

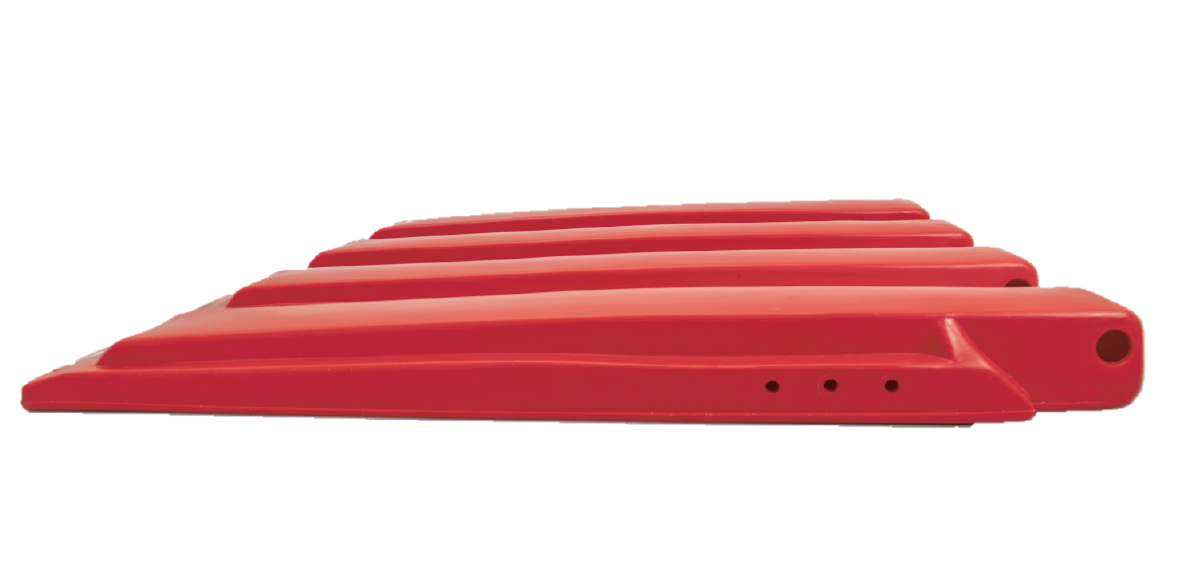

Industrial skip bin lid side profile
Specifications:
Lid Size Weight Material Hardware Markings
1.5m 6.5kg LLDPE Brass threads Personalised logo or branding available
3.0m 10kg LLDPE Brass threads Personalised logo or branding available
Colour Options:
Yellow
Black
Red
Blue

Additional colours are available upon request. Minimum order quantity may apply.

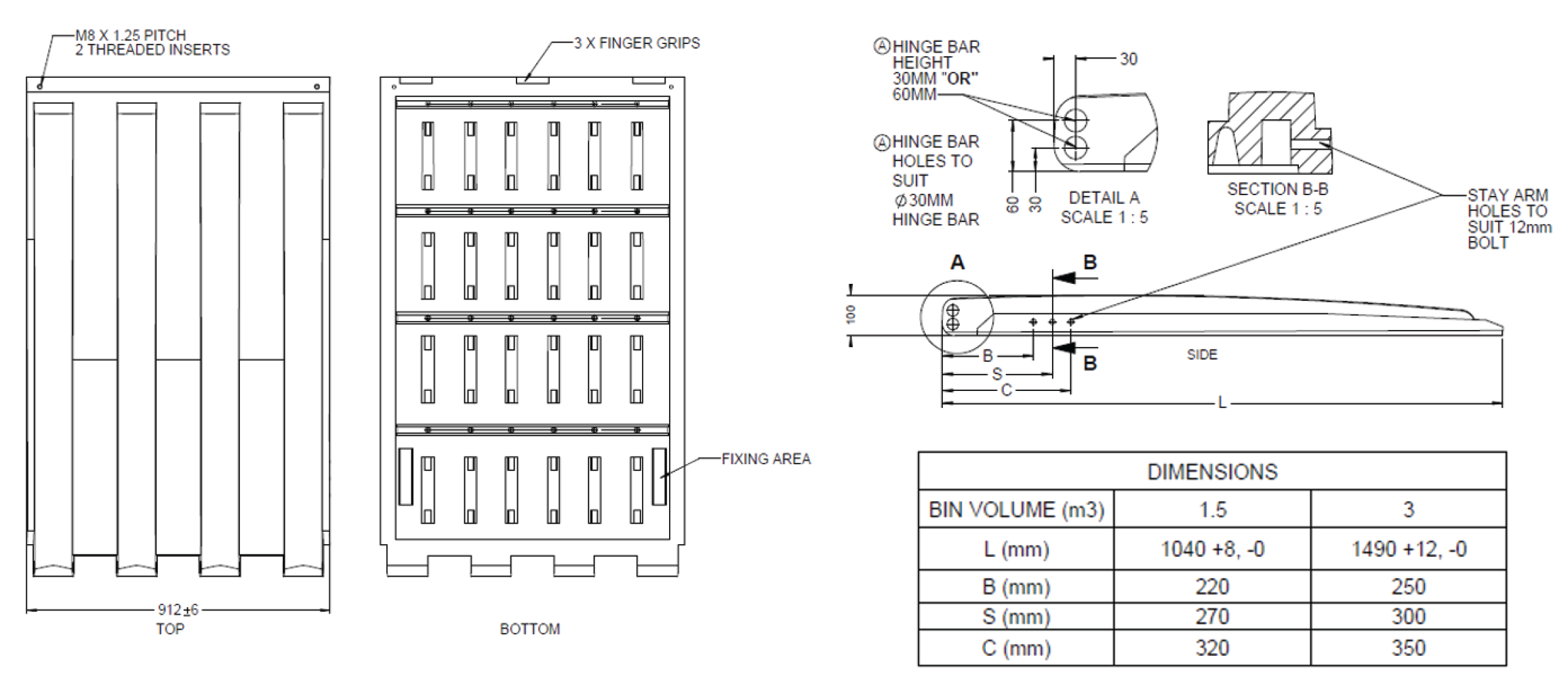

Dimensional Drawing:
Dimensional drawing for industrial skip bin lids
