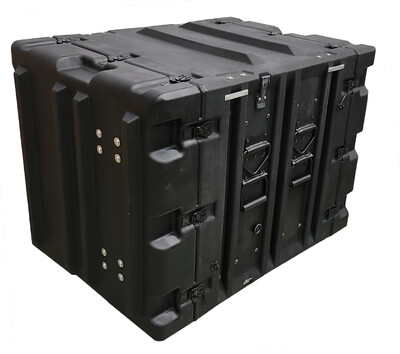

TR2425-052705RCK03 Classic Rack 11U Rack Mount Server Case
Made in Australia


Commercial Quote
Product Features
  • SUPERIOR SHOCK & VIBRATION PROTECTION - Best-in-class protection for sensitive equipment with 15-30 G fragility ratings.
  • HEAVY-DUTY LOAD CAPACITY - Protects equipment up to 155 kg with confidence.

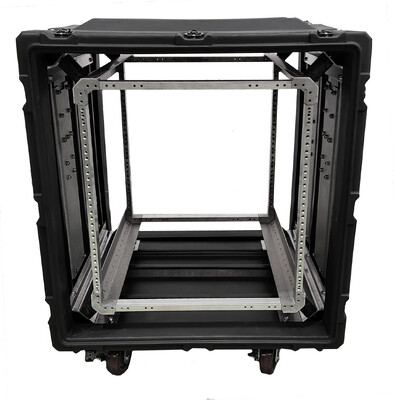

  • PRECISION RACK FRAME - Supplied with threaded aluminium frame featuring metric M6 threading.
  • INTEGRATED ACCESSORY STORAGE - Back lid fitted with soft pouch for cables and accessories.

Overview

TR2425-052705RCK03 Australian Made 11U CLASSIC RACK CASE Extremely rugged, rotomolded Pelican Classic Rack cases have demonstrated their strength in the field thousands of times over, protecting fragile equipment from damage in storage and during transport. Our precision-tuned elastomeric shock mount systems provide maximum shock and vibration protection for sensitive electronics and equipment. Get started with the strongest, most secure rack in the industry.
STANDARD COLORS
Grey 133
Fed Std #26270
Tan 250
Fed Std #20372
LT Blue 135
Pantone #292U
White 132
Fed Std #27925
LT Yellow 136
Pantone #012U
DK Green 138 - Forest
Fed Std #24052
Orange 134
Fed Std #12197
DK Yellow 131
Fed Std #23538
Maroon 197
Pantone #202U
DK Blue 101
Fed Std #25052
Black-032
Fed Std #27040
Red 130
Fed Std #21105
Olive Drab-137
Fed Std #34096
Purple-129
Pantone #245U



Specs

Measurements

Roto molded case dimensions vary +/- 2% case-to-case depending on the temperature and humidity. For cases requiring critical dimensions, please notify Pelican Customer Service in your quote request.

Interior (L×W×D) - Inches
23.74 x 38.46 x 24.72 in
Interior (L×W×D) - Centimeters
60.3 x 97.69 x 62.79 cm
Exterior (L×W×D) - Inches
40.39 x 27.01 x 32.09 in
Exterior (L×W×D) - Centimeters
102.59 x 68.61 x 81.51 cm
Rack Depth
25.00 in (63.5 cm)
Lid Depth
5.25 in (13.34 cm)
Back Lid Depth
5.25 in (13.34 cm)
Weights
Weight
100.31 lbs (45.5 kg)
Materials
Body Material
Rotomolded polyethylene
Hardware Material
Metric M6 threading
Frame Material
Threaded aluminium frame
