TR1907-022505RCK01 MAC Rack
TR1907-022505RCK01 MAC Rack
TR1907-022505RCK01 MAC Rack

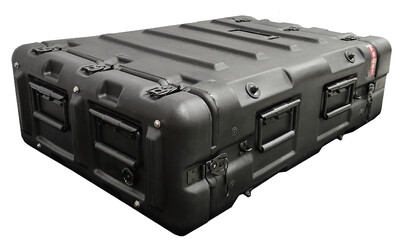

TR1907-022505RCK01 MAC Rack 3U Rack Mount Server Case
Made in Australia


Commercial Quote
Product Features
  • LIGHTWEIGHT & COMPACT - Ideal for semi-ruggedised equipment requiring excellent shock and vibration protection without the bulk.
  • BUILT-IN MOBILITY - Integrated wheels for effortless transportation and handling in the field.
  • 90 KG LOAD CAPACITY - Reliable protection for equipment with 50-80 G fragility ratings.

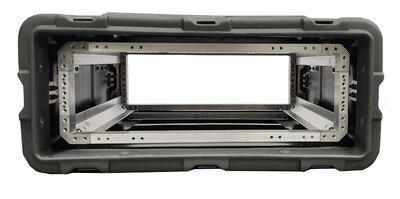

  • PRECISION RACK FRAME - Supplied with threaded aluminium frame featuring metric M6 threading.
  • DUAL STORAGE POUCHES - Both lids fitted with soft pouches for organised accessory storage.

Overview

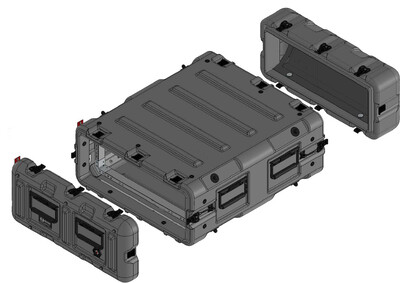

TR1907-022505RCK01 Australian Made 3U MAC RACK CASE Compact and lightweight, MAC Rack cases boast a smaller footprint to make the most of limited space. MAC Rack cases protect equipment with the same rotomolded outer shell and 19" EIA shock mounted rack as the Classic Rack, but with a smaller sway space. MAC Rack cases are perfect for less sensitive equipment that requires protection from shock, vibration, moisture, and impact along with the advantages of a heavy-duty case.
STANDARD COLORS
Grey 133
Fed Std #26270
Tan 250
Fed Std #20372
LT Blue 135
Pantone #292U
White 132
Fed Std #27925
LT Yellow 136
Pantone #012U
DK Green 138 - Forest
Fed Std #24052
Orange 134
Fed Std #12197
DK Yellow 131
Fed Std #23538
Maroon 197
Pantone #202U
DK Blue 101
Fed Std #25052
Black-032
Fed Std #27040
Red 130
Fed Std #21105
Olive Drab-137
Fed Std #34096
Purple-129
Pantone #245U



Specs

Measurements

Roto molded case dimensions vary +/- 2% case-to-case depending on the temperature and humidity. For cases requiring critical dimensions, please notify Pelican Customer Service in your quote request.

Interior (L×W×D) - Inches
19.29 x 16.54 x 14.57 in
Interior (L×W×D) - Centimeters
49 x 42.01 x 37.01 cm
Exterior (L×W×D) - Inches
31.69 x 22.05 x 9.65 in
Exterior (L×W×D) - Centimeters
80.49 x 56.01 x 24.51 cm
Rack Depth
20.00 in (50.8 cm)
Lid Depth
2.20 in (5.59 cm)
Back Lid Depth
2.20 in (5.59 cm)
Weights
Weight
37.48 lbs (17 kg)
Materials
Body Material
Textured low-visibility rotomolded polyethylene
Hardware Material
Metric M6 threading
Frame Material
Threaded aluminium frame
